MPN RangeSchmitt’s Magnetically Coupled
MPN Range Centrifugal Pumps

  • PVDF or PP (Polypropylene)
  • Ceramic Bearing or SiC Bearings
  • Temperatures up to 200° F
  • Heads up to 105 feet
  • Flow Rate up to 95 gal./min.
  • Normal i.e. Flooded Suction
  • Male Threaded NPS Connnections
  • Block i.e. Close Coupled Construction
  • Any Voltage or Frequency, 2800 RPM
  • Explosion proof or flame proof available

Applications Advantages
  • Medical facilities
  • Laboratory facilities
  • Electro-plating applications
  • Wafer production in the micro-chip
    industry
  • Printed circuit board (PCB)
    Manufacture
  • Water treatment and sewage
    systems
  • Easy to Assemble & Disassemble
  • No Rotating Seals
  • No Metal Contacts the Fluid Medium
  • Low Maintenance, due to wear-
    resistant hydrodynamic slide
    bearings
  • High chemical resistance to corrosive
    media
  • Universally Adaptable
  • Easy to Modify for Specific Uses

Model #
Volume
Max
Pressure ht/
Head max
Motor
Suction
Connections
Delivery
Connections
Weights
_
l/min
gpm
m
ft
kW
hp
Nom Bore
Male Thread
Nom Bore
Male Thread
kg
lbs
MPN 80
35
9
4
13
0.18
0.24
10
3/4"
10
3/4"
4.7
10
MPN 101
80
21
7
22
0.18
0.24
15
1"
15
1"
4.5
10
MPN 115
90
23
10
32
0.25
0.33
15
1"
15
1"
5.3
12
MPN 130
140
36
14
45
0.55
0.73
20
1 1/4"
15
1"
8.6
20
MPN 150
220
58
18
59
1.10
1.47
25
1 1/2"
20
1 1/4"
15.4
34
MPN 170
320
84
26
85
2.2
2.95
32
2"
25
1 1/2"
23.9
53
MPN 190
380
95
32
105
3
4.02
32
2"
25
1 1/2"
29
64

Larger delivery rates:
MPN Range Chart

Smaller delivery rates:
MPN Range Chart

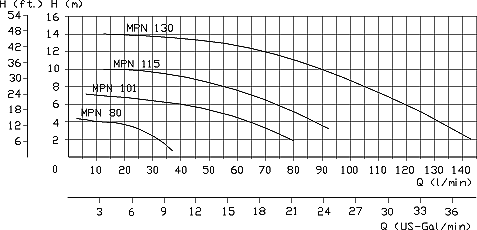

Characteristic Curves: Measured with water as a test medium at a temperature of 68° F
using three-phase double pole motors.

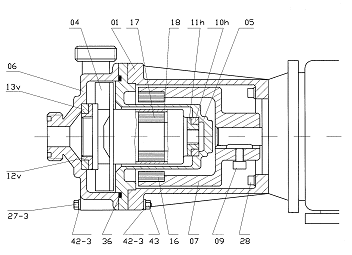

Part-No.
Part
Material
    Standard Request
01 Mounting Flange PP*/AL
04/17
18		 Impeller with Magnet + Cover PVDF
PVDF		 PP
PP
11h Rotating Bearing PTFE SiC
12v Rotating Bearing PTFE SiC
05
10h		 Back Plate +
Stationary - Ring		 PVDF
Ceramic		 PP
SiC
06
13V		 Pump Housing +
Stationary - Ring		 PVDF
Ceramic		 PP
SiC
36 Housing Seal Viton FEP/EPDM
07
16/09		 Support +
Magnet + Bolt		 St.
27-3 Hexagon Bolt St. Steel
28 Bolt + Washer St. Steel
42-3 Washer St. Steel
43 Hexagon Nut St. Steel
* MPN 80 and MPN 190 in Aluminum

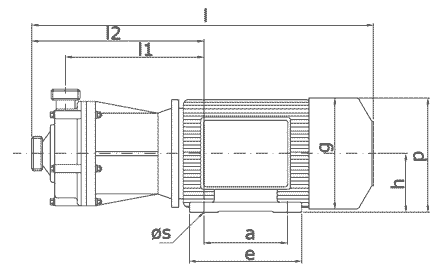

DIMENSIONS Type MPN
Type
h
h 1
l
l 1
l 2
g
g1
p
a
b
e
f
c
s
m
MPN 80
56
110
290
123
158
111
164
113
71
90
90
112
8
6
25
MPN 101
56
118
297
131
165
111
164
113
71
90
90
112
8
6
31
MPN 115
63
134
335
145
185
126
156
126
80
100
97
116
6
7
37
MPN 130
71
150
372
153
203
139
194
140
90
112
108
140
10
8
42
MPN 150
80
170
415
178
228
157
209
159
100
125
125
160
11
10
47
MPN 170
90
190
495
222
277
177
235
180
125
140
152
180
14
11
58
MPN 190
100
211
535
235
295
198
255
200
140
160
175
205
14
112
65
