MPN RangeSchmitt’s Stainless Steel
UP Range Centrifugal Pumps

  • Stainless Steel
  • Mechanically sealed with different materials
    depending on operating conditions
  • Temperatures up to 300° F
  • Heads up to 128 feet
  • Flow Rate up to 121 gal./min.
  • Normal i.e. Flooded Suction
  • Male Threaded NPS Connnections
  • Block i.e. Close Coupled Construction
  • Any Voltage or Frequency, 2800 RPM
  • Explosion proof or flame proof available

Applications Advantages
  • Petroleum Industry
  • Paper Manufacturing
  • Food Processing
  • Heat Exchangers
  • All parts in contact with the
    transmitted medium are
    manufactured from stainless steel
  • Suitable for the transmission of hot
    and corrosive media
  • Can be easily sterilized
  • These pumps can be supplied with
    a double mechanical seal (UP-DO)

Model #
Volume
Max
Pressure ht/
Head max
Motor
Suction
Connections
Delivery
Connections
Weights
_
l/min
gpm
m
ft
kW
hp
Nom Bore
Male Thread
Nom Bore
Male Thread
kg
lbs
UP 80
32
8
5
16
0.18
0.24
10
1/2"
10
1/2"
5.2
12
UP 100
75
19
8
26
0.18
0.24
15
3/4"
15
3/4"
5.3
12
UP115
90
23
9
29
0.25
0.33
15
3/4"
15
3/4"
6.1
14
UP 130
165
43
12
39
0.55
0.73
20
1"
15
1"
9.7
21
UP 150
220
58
15
49
1.10
1.47
25
1 1/4"
20
1"
16.3
36
UP 170
360
95
23
75
2.20
2.95
32
1 1/2"
25
1 1/4"
24.4
54
UP 190
400
105
28
92
3.00
4.02
32
1 1/2"
25
1 1/4"
29.7
66
UP 210
460
121
39
128
5.50
7.37
40
2"
32
1 1/2"
39.9
87

Smaller delivery rates:

Larger delivery rates:

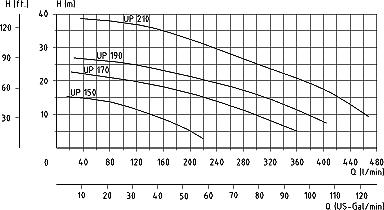

Characteristic Curves: Measured with water as a test medium at a temperature of 68° F
using three-phase double pole motors.
Part-No.
Part
Material
    Standard Request
01 Mounting Flange AL St. Steel
02 Shaft Extension St. Steel
04 Impeller St. Steel
04-2 Locking Nut St. Steel
05 Back Plate St. Steel
06 Pump Housing St. Steel
26 Flinging Disc Rubber
27-3 Hexagon Bolt St. Steel
28 Bolt + Washer St. Steel
29 Cotter Pin St. Steel
30 Rotating Seal Carbon SiC/PTFE
31 O-Ring Seal Viton FEF/EPDM
32 Coil Spring Hast. C
33 Staitionary Seal Ceramic SiC
34 O-Ring Seal Viton FEP/EPDM
35 Trust Washer St. Steel
36 Housing Seal PTFE
42-3 Washer St. Steel
42.3 Locking Washer St. Steel
43 Hexagon Nut St. Steel
